Skid-Mounted Systems
Highly Integrated, Modular Turnkey Process Solutions Built for Rapid Deployment.
Discuss with Engineers
Technical Overview

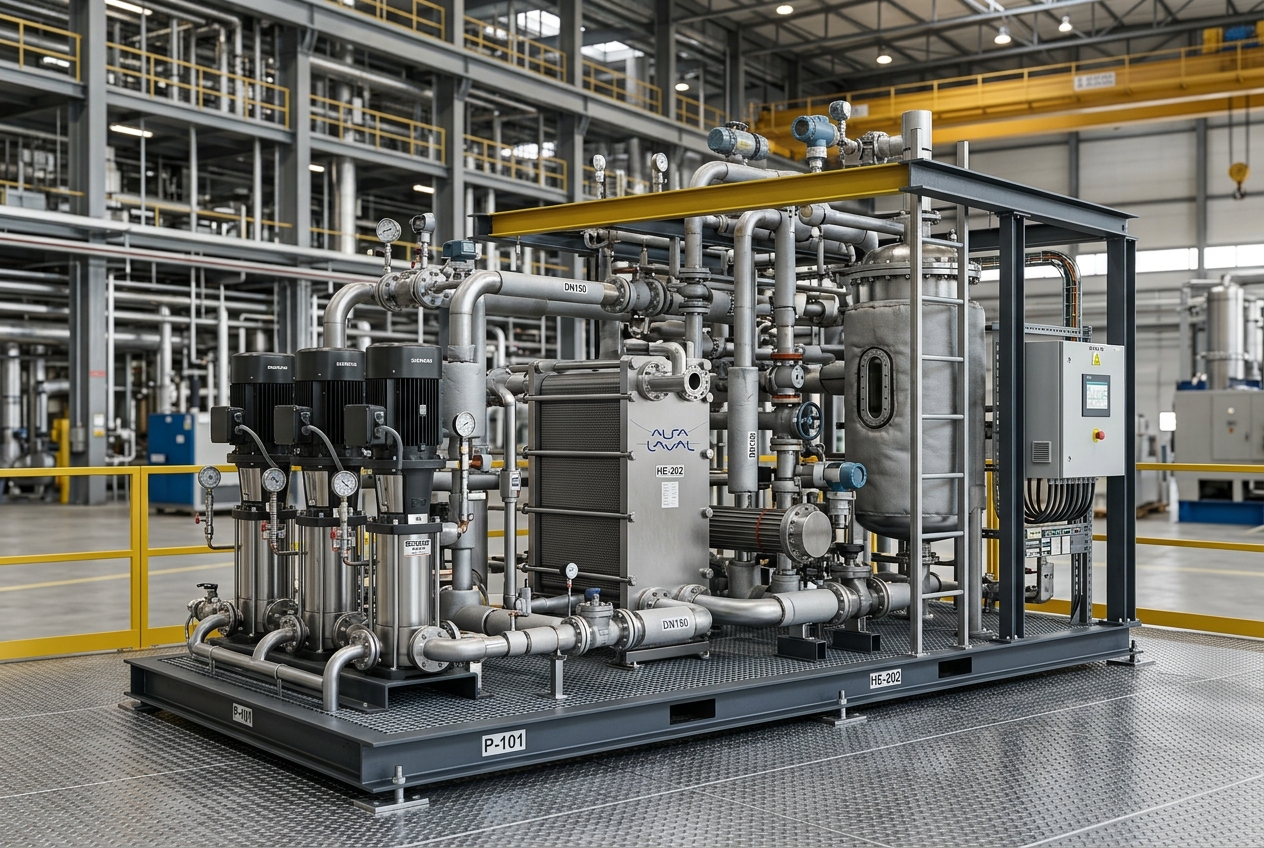

Our Skid-Mounted Process Systems compress complex mechanical, electrical, and control engineering into a single, pre-fabricated modular unit. By integrating heat exchangers, high-pressure pumps, control valves, instrumentation, and PLC automation on a rigid structural chassis, we drastically reduce field installation risk and site downtime.
Technical Specifications
| Base Structure | Heavy-Duty Carbon Steel (IS 2062) or SS 304/316 Base Frames |
| Piping Standards | ASME B31.3 Process Piping / B31.1 Power Piping |
| Electrical Integration | NEMA 4X / IP65 enclosures, intrinsically safe wiring available |
| Welding Standards | TIG (GTAW) / MIG (GMAW), 100% Radiography tested options |
| Automation | Pre-wired Siemens/Allen-Bradley PLC with HMI integration |
| Testing | Factory Acceptance Testing (FAT), Hydrostatic, Pneumatic testing |
Applications / Industries Served
Oil & Gas
Chemical injection skids, fuel gas conditioning, and pumping stations.
Water Treatment
RO skids, ultrafiltration systems, and automated dosing skids.
Pharmaceuticals
Clean-in-Place (CIP) and Sterilize-in-Place (SIP) hygienic skids.
Chemical Processing
Solvent recovery, blending systems, and reactor heating/cooling skids.
Food & Dairy
Pasteurization loops and sanitary heat transfer packages.
Energy & Power
Lube oil conditioning systems and boiler feed water skids.
Why Choose PAL Engineers
Single-Source Responsibility
We handle design, structural engineering, piping, and automation under one roof.
Space-Optimized 3D Layouts
Advanced CAD modeling minimizes the required footprint while maximizing maintenance access.
True Plug-and-Play
Simply connect utilities on-site. Reduces project schedules by months compared to stick-built construction.
